ASHATA TPA3255 Digital Power Amplifier Board, 300Wx2 Bridge Mono Amplifier Board,High Power Stereo Bridge Mono
4.5 (117 items)
Limited Time SaleUS$15.68 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 218049301 | Release Date | 2026/05/03 | List Price | US$10.46 | Model Number | 218049301 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

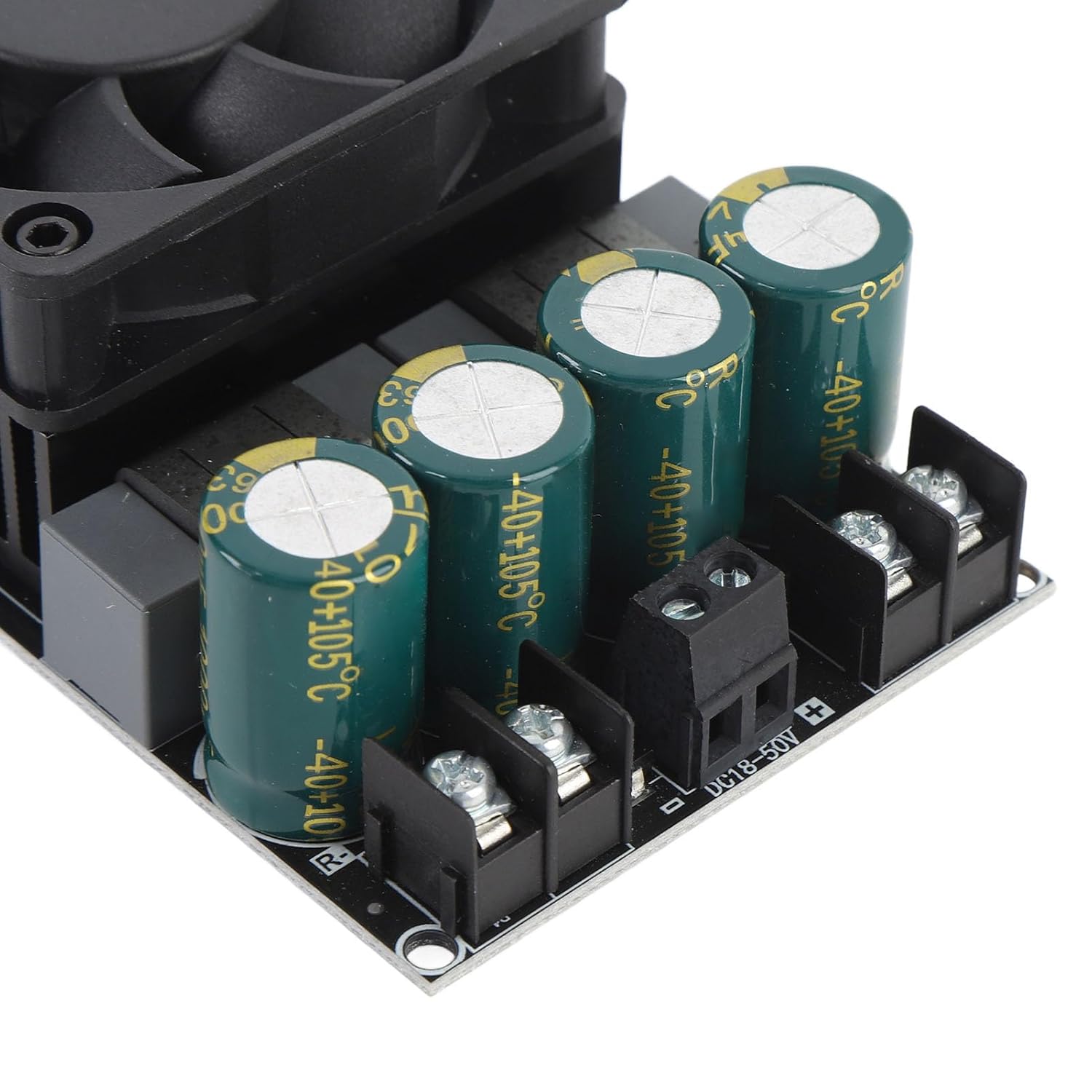

Spec: Item Type: ZK-3002 amplifier board Material: PCB Amplifier Chip: TPA3255 Compatible Power Supply: Operating voltage range 18-50VDC, maximum 53V. Recommended voltage is 36-48V with a current of 10A or above. Higher voltage allows for greater output power. Gain Selection: Potentiometer 10 speed adjustment, 26dB-36dB Bridge mode: Power off first, the DIP No. 1 to the ON position, output R+ L+ short circuit parallel output, R-L - short circuit parallel output. Maximum Power Output: In BTL mode: 2x300W 50V 4Ω, 160W 50V 8Ω In PBTL mode: 600W 50V 2Ω, 300W 50V 4Ω, 160W 50V 8Ω How to Use: Refer to the instruction manual for wiring connections. Package List: 1 x ZK-3002 Amplifier Board 1 x Connection Cable 1 x User Manual
- Product Information: Power amplifier chip TPA3255, working voltage range 18-50VDC, limit 53V. It is recommended to use a DC power supply with a voltage of 36-48V and a current of more than 10A. The higher the voltage, the greater the output power.
- Adaptive Speaker: 3-8 ohms, 50-300W in BTL dual channel mode. PBTL mono mode 2-8 ohms, 100-600W. Heat dissipation mode, temperature control automatic air cooling, or manual selection of fan rotation.
- Gain Selection: Potentiometer 10 speed adjustment, 26dB-36dB. Bridge mode, power off first, the DIP No. 1 to the ON position, output R+ L+ short circuit parallel output, R-L - short-circuit parallel output. In BTL mode, 2x300W 50V 4Ω, 160W 50V 8Ω. Under maximum power PBTL mode, 600W 50V 2Ω, 300W 50V 4Ω, 160W 50V 8Ω.
- Protective Mechanism: Input undervoltage, overheat, overcurrent, short circuit prevention. No input anti reverse protect, positive and negative terminals can not be reversed.

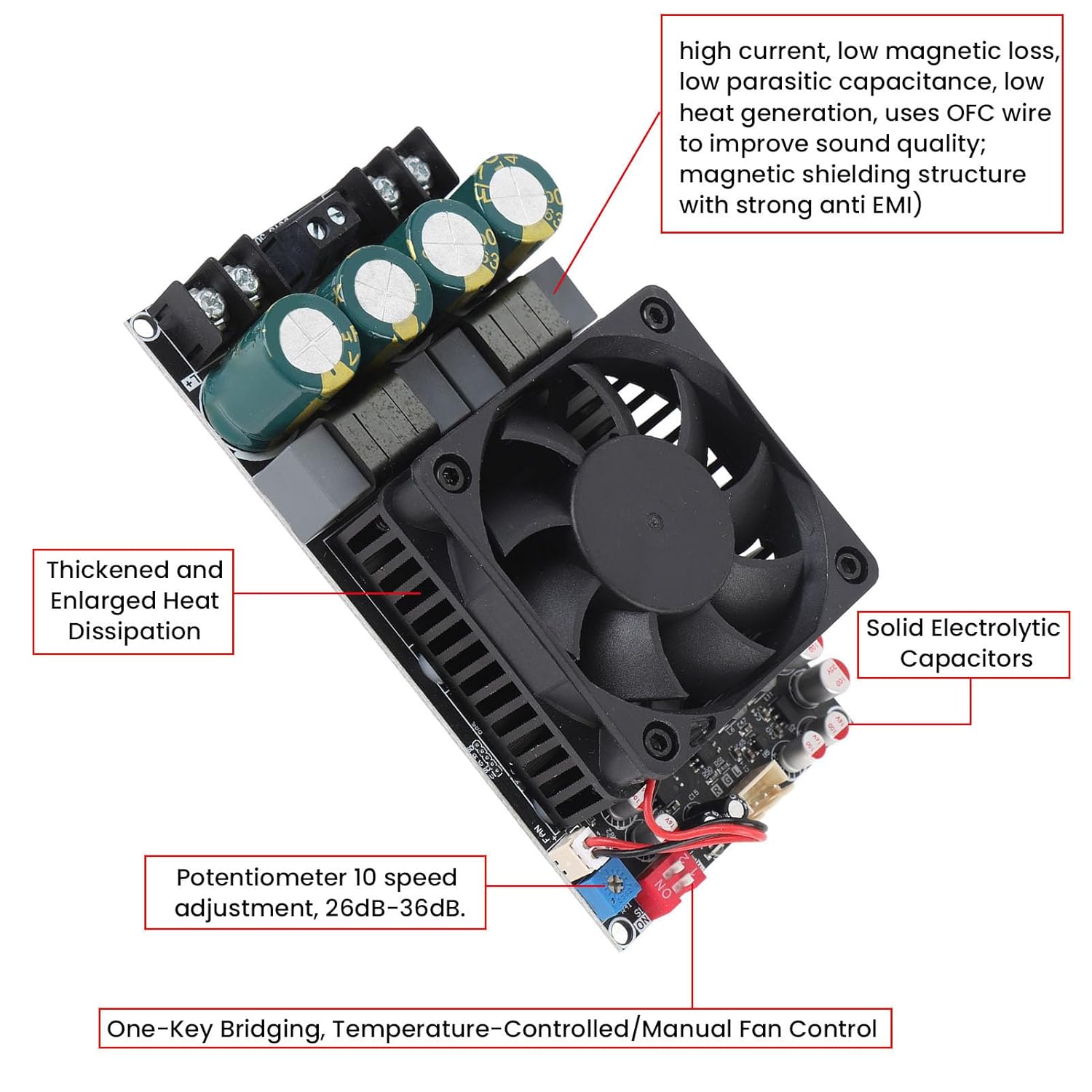

- Enlarged Heat Sink: Equipped with large and efficient heat sink, the device ensures stable operating under sustained high power output. It effectively dissipates generated heat, enhancing the operational efficiency of the amplifier board and ensuring outstanding performance under high loads.
| Model | ZK-3002 |
|---|---|
| Brand Name | ASHATA |
| Manufacturer | ASHATA |
| Number of Channels | 2 |
| Included Components | no |
