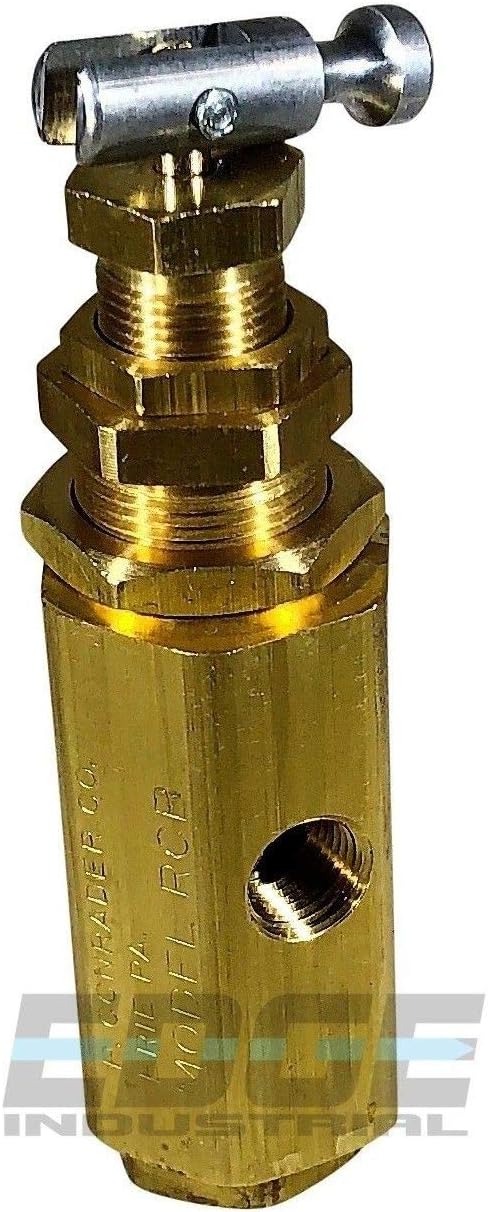

Pilot Discharge Unloader Valve for AIR Compressor 1/4" Female NPT FNPT (140-160 PSI)
4.8 (108 items)
Limited Time SaleUS$16.17 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 218755874 | Release Date | 2026/05/03 | List Price | US$10.78 | Model Number | 218755874 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
pilot valves are used in compressed air systems to actuate another device using a pneumatic (air) signal. pilot valves always work in conjunction with another device. examples of usage include - actuating a throttle control to slow down or speed up and engine - opening and closing a discharge valve to vent air to the atmosphere - operating intake unloaders in the compressors head. Pilot valves operate in a set pressure range. The range has an unload setting and a load setting. As a compressor operates in this range, it is said to by cycling. At the unload setting, the pilot valve opens and actuates another device (throttle control, discharge valve). At the load setting, the pilot valve closes and returns the compressor to normal operation. NEED A THROTTLE CONTROL CABLE??? Visit our store for numerous sizes and ratings on throttle control cables. we do combine shipping on all of our products.
- Pilot Unloader Valve For Air Compressors 1/4" FPT inlet - 1/8" outlet
- Manual Hand Unloader
- 30-40 PSI Adjustable Up or Down
- 1/4" FNPT Inlet & 1/8" FNPT Discharge Outlet
- 250 PSI MAX OPERATING PRESSURE, 15f to 350f Temp rating, Pilot Valve
| UPC | 691023899490 |
|---|---|
| Size | 1/4" inlet, 1/8" outlet |
| Brand Name | conrader |
| Unit Count | 1.0 Count |
| Valve Type | pilot_operated |
| Item Weight | 7.52 ounces |
| Thread Size | 1/4-1/8 |
| Thread Type | NPT |
| Manufacturer | EDGE CONRADER |
| Material Type | Brass, Stainless Steel |
| Connector Type | Threaded |
| Exterior Finish | Stainless Steel, Brass |
| Number of Ports | 2 |
| Maximum Pressure | 250 Pound per Square Inch |
| Specification Met | ASME B16.34, ASTM, ETL |
| Inlet Connection Size | 0.25 Inches |
| Inlet Connection Type | National Pipe Tapered |
| Outlet Connection Size | 0.13 Inches |
| Outlet Connection Type | FNPT |
| Manufacturer Part Number | RCB-HU |
| Manufacturer Warranty Description | 90 days from date of purchase |
